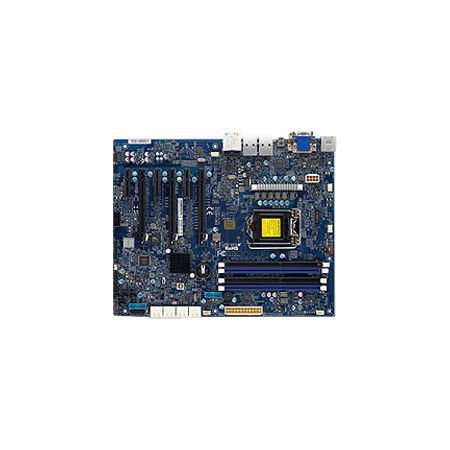

Supermicro C7Z87 Desktop Motherboard - Intel Z87 Express Chipset - Socket H3 LGA-1150 - Retail Pack Item # 602415
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
602415
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Supermicro's ATX form factor motherboard model using Intel 8 series Express chipset supports Core i7/i5/i3 processors, Pentium and Celeron. The Z87 platform supports overclocking of CPU and memory with increase of up to 10% in performance, with XTU management tool. Other feature includes dual BIOS capable for BIOS recovery and dual boot platforms.
Product Details
| Item # | 602415 |
| Manufacturer # | 11815676 |
| Number of SATA Interfaces | 8 |
| Number of DisplayPort Outputs | 1 |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, Watch Dog Timer |
| Onboard LEDs Header | Yes |
| DisplayPort | Yes |
| Memory Speed Supported | 3 GHz (O.C.); 2.80 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 1.60 GHz |
| Certifications & Standards | ACPI 5.0; CE; FCC |
| Compatible Processors | Core i5, Core i3, Core i7 ( supports 4th Generation Intel Core i3 / i5 / i7 ) |
| Number of Network (RJ-45) Ports | 2 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 4 x USB 3.0 - header ¦ 6 x USB 2.0 - header ¦ 2 x FireWire - header ¦ 2 x serial - header ¦ 1 x SPDIF out - header |
| Registered or Buffered | Unbuffered |
| Graphics Controller Manufacturer | Intel |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 - connector(s): 6 x 7pin Serial ATA - 6 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061 : SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 device(s) |
| Number of PCI Express x16 Slots | 2 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 5 |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 2800 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 3000 MHz (O.C.) |
| VGA | Yes |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| brand name | Supermicro |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Audio Channels | 7.1 |
| Network Controller | Intel I210-AT / I217V |
| Number of USB 2.0 Ports | 4 |
| Package Type | Retail |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM; UDIMM |
| Total Number of FireWire/i.LINK Ports | 2 |
| Processor Socket | LGA1150 Socket |
| Chipset Model | Z87 Express |
| Sound Controller Manufacturer | Realtek |
| Number of FireWire/i.LINK 400 Ports | 2 |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of PCI Slots | 2 |
| Total Number of Onboard USB Ports | 10 |
| RAID Levels | 0; 1; 5; 1+0 |
| HDMI | Yes |
| Processor Supported | Core i7; Core i5; Core i3 |
| BIOS Features | UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| Total Number of USB Ports | 6 |
| Number of PCI Express x1 Slots | 3 |
| width | 12 in |
| Number of Memory Slots | 4 |
| Sound Controller Model | ALC1150 |
| depth | 9.6 in |
| Product Name | C7Z87 Desktop Motherboard |
| Audio Codec | Realtek ALC1150 |
| manufacturer | Supermicro Computer, Inc |
| Audio Line Out | Yes |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/600 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of USB 3.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-3000/PC3-24000 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-1600/PC3-12800 |
| Number of Total Expansion Slots | 7 |
| Chipset Manufacturer | Intel |
| Memory Technology | DDR3 SDRAM |
| form factor | ATX |
| Number of HDMI Outputs | 1 |
| Number of Onboard USB 3.0 Ports | 4 |
| Onboard S/PDIF Header | Yes |
| model name | C7Z87 |
